CAD

SolidWorks Drawings and Assembly

CAD Drawings

Our design is a mix of store bought and machined parts. The CAD drawings for the machined parts are shown below.

Cad Drawing of Axle Hub

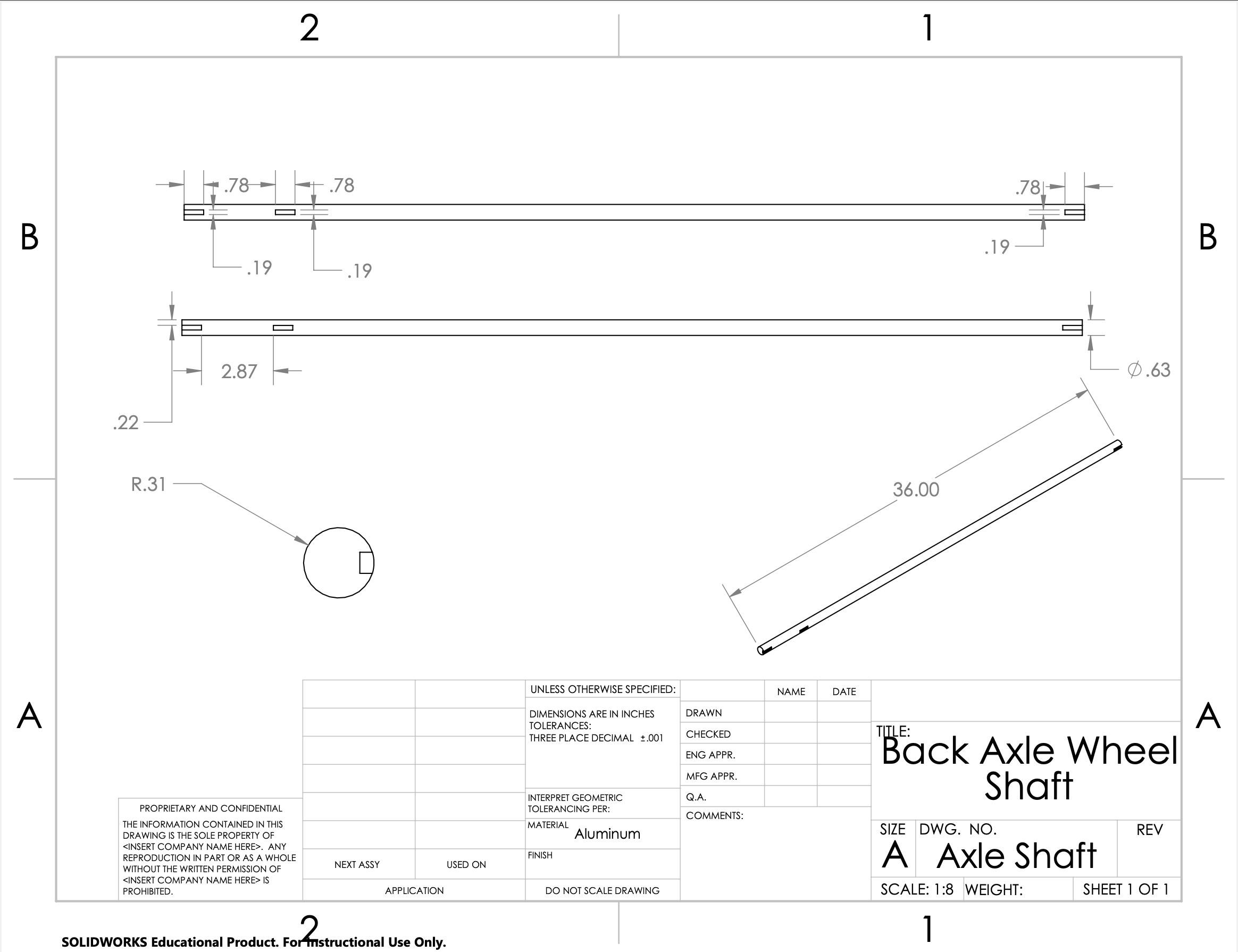

Cad Drawing of Back Axle Wheel Shaft

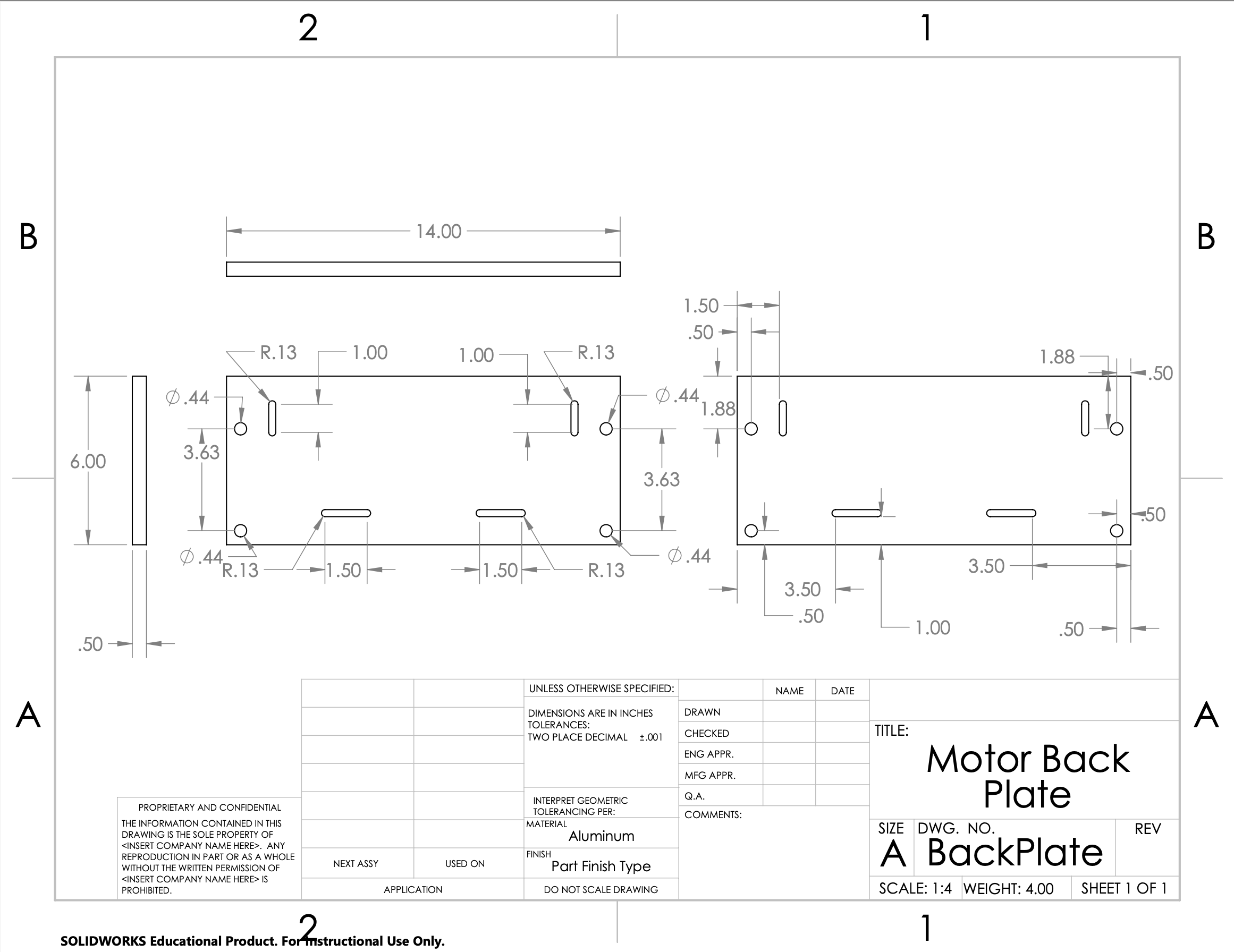

Cad Drawing of Back Plate

Cad Drawing of Brake Mount

Cad Drawing of Brake Pad

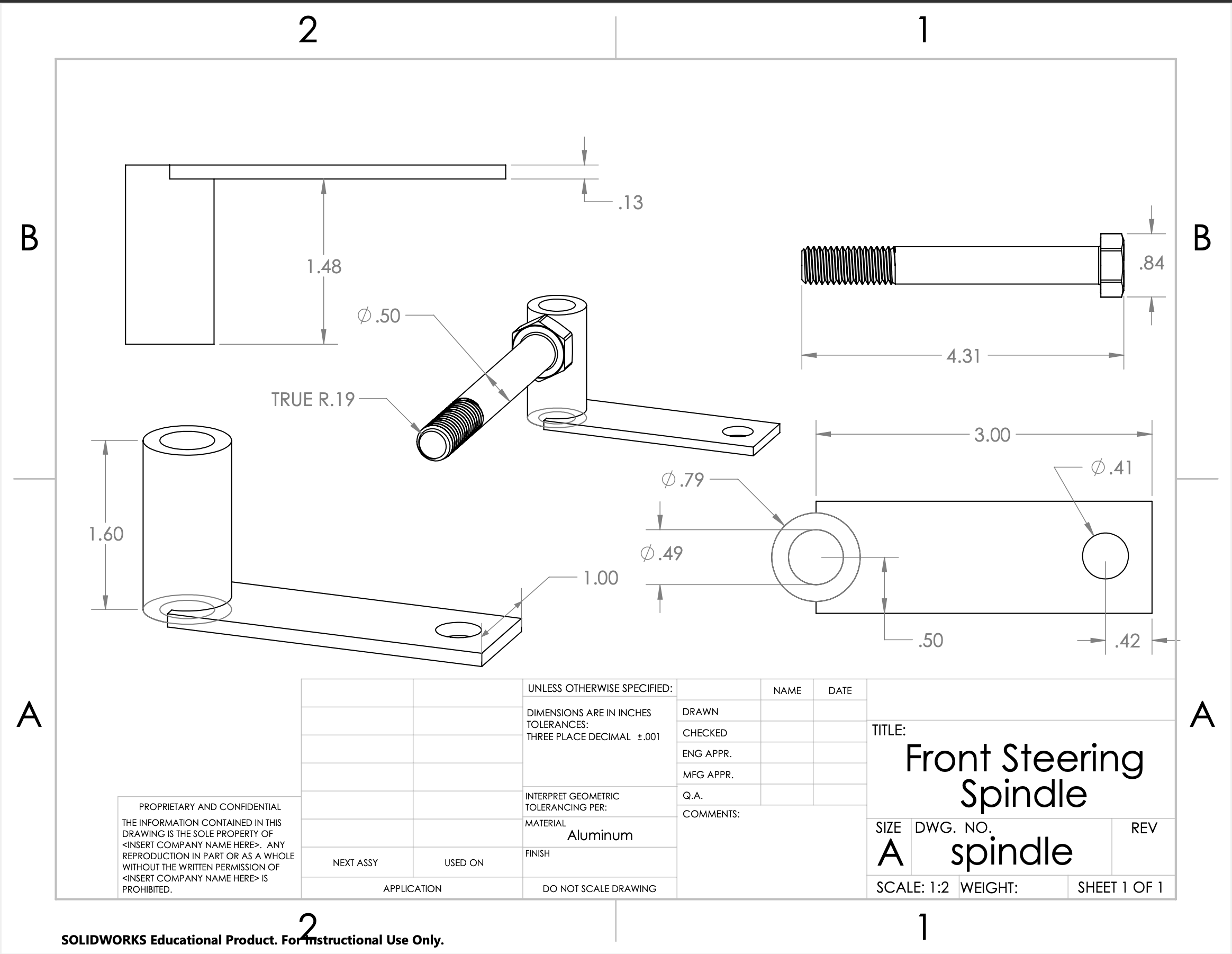

Cad Drawing of Spindle

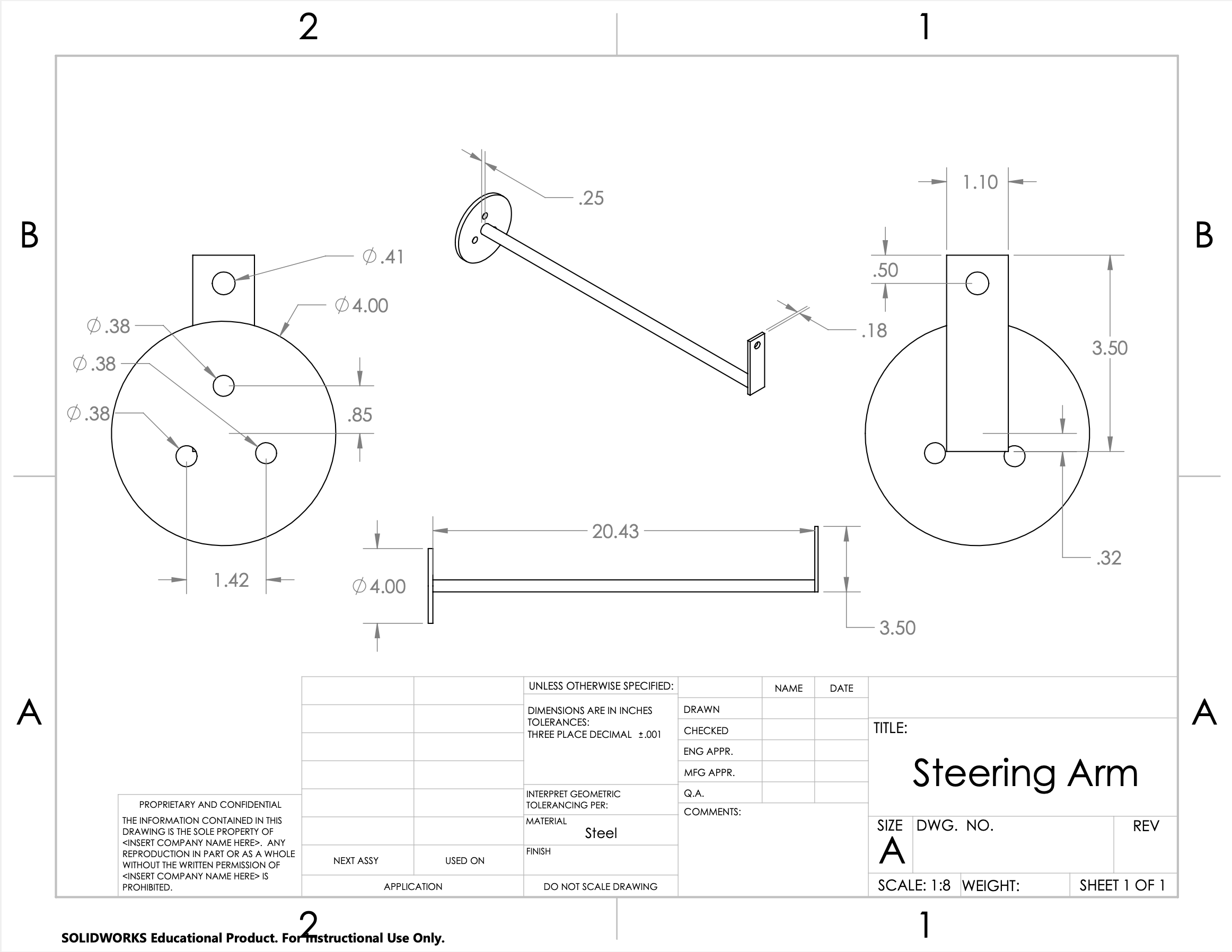

Cad Drawing of Steering Arm

Cad Drawing of Steering Column to Bearing Tube

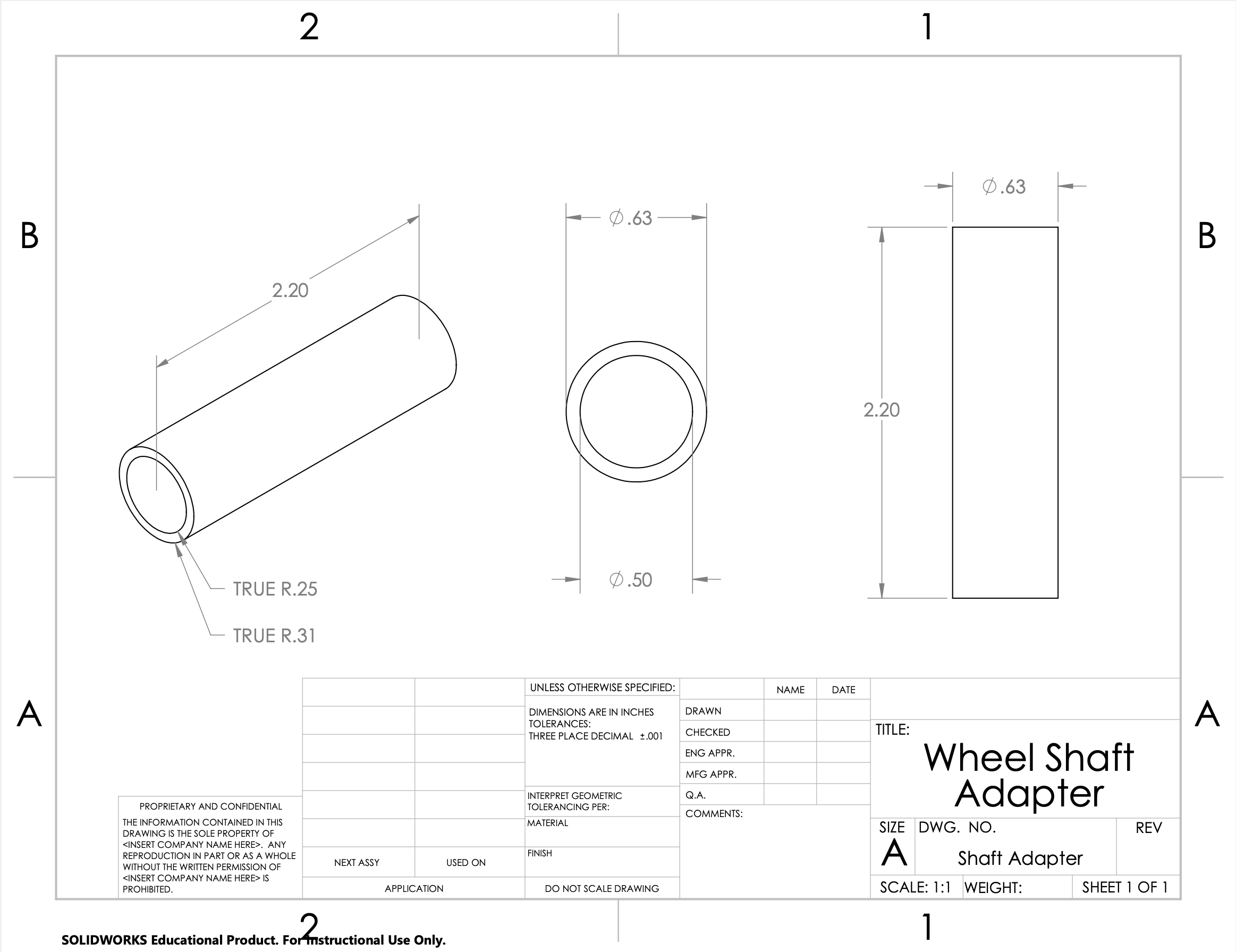

Cad Drawing of Wheel Shaft Adapter

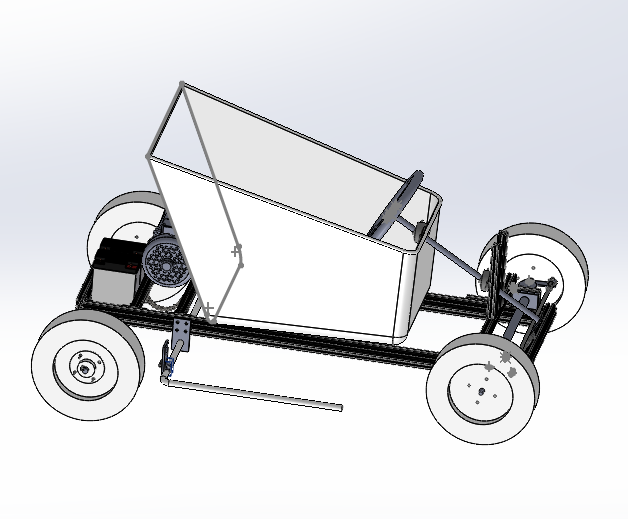

CAD Assembly

We assembled our CAD to see how it all intersects.

Cad Assembly Front View

Cad Assembly of Side View

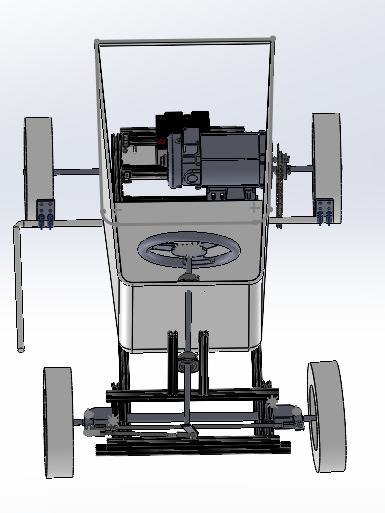

Cad Assembly Top View from Front

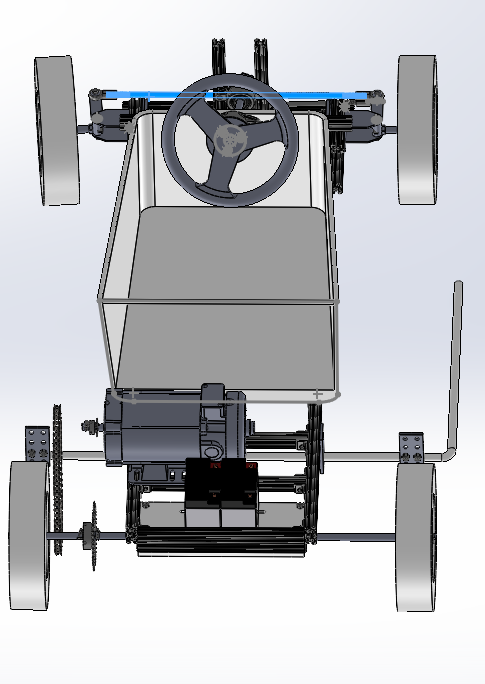

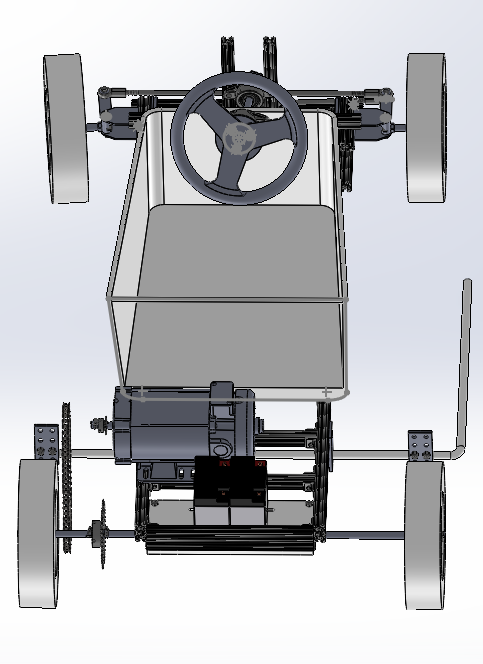

Cad Assembly Top View from Back

Bill of Material

Bill of Material
